16/9 support










  Magicsoft CG supports Standard Definition with 4/3 and 16/9 modes.

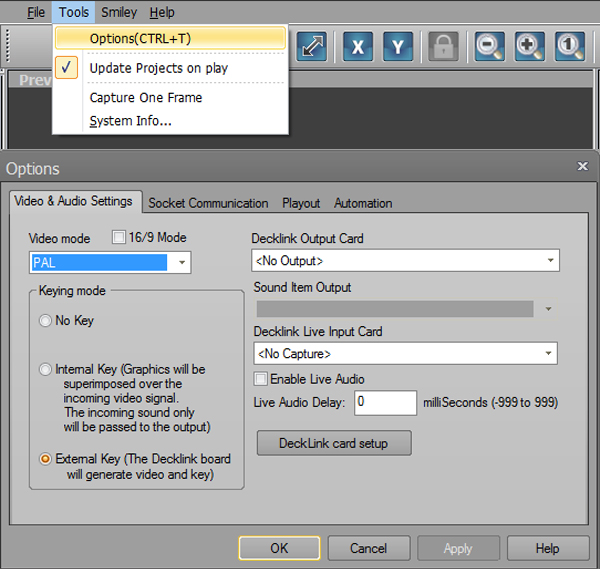

In order to set the video mode go to "Tools" menu and choose "Option".

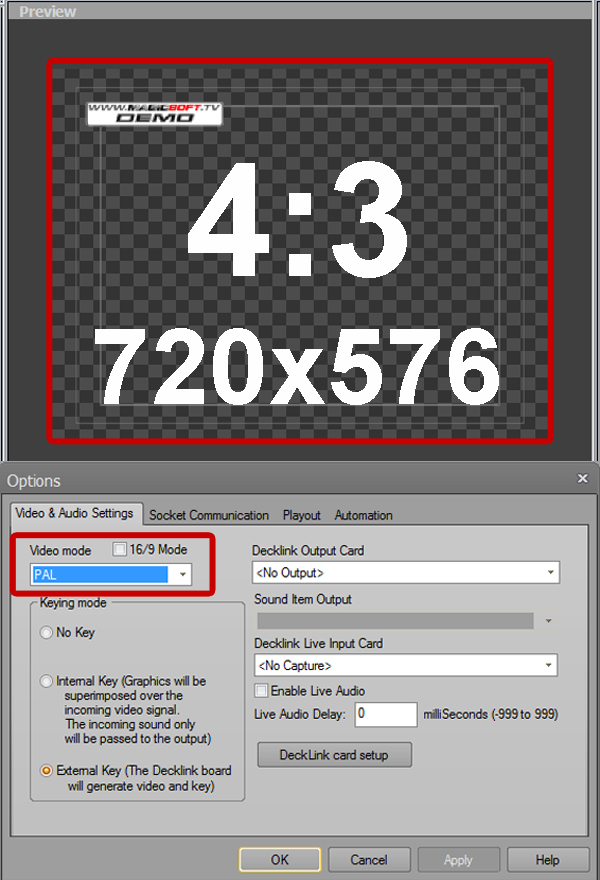

  By doing that you will have access to the software dialog containing the video settings. Default setting is PAL 4/3.

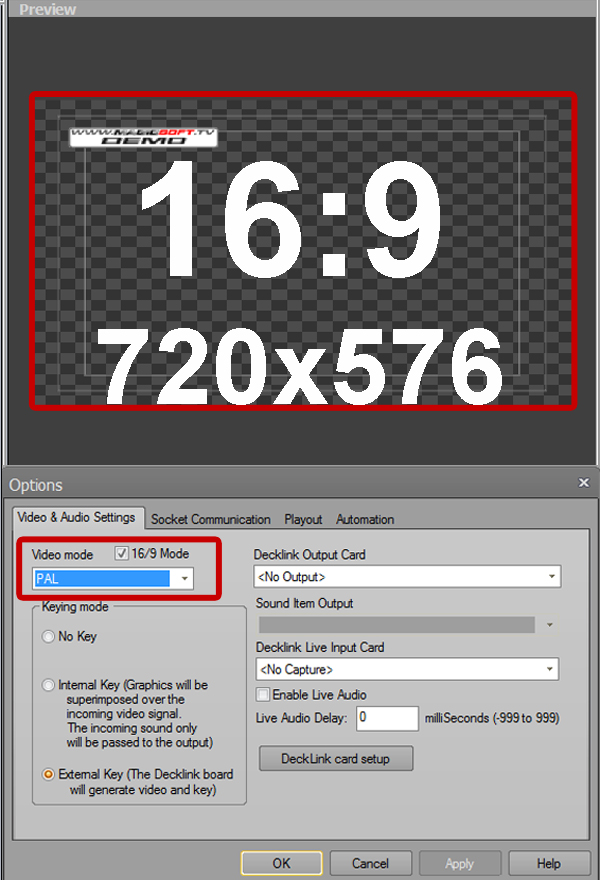

  As you can see in the picture, the video standard can be chosen from the dropdown list and the 16/9 mode can be activated by checking the corresponding checkbox.

  The software needs to be restarted in order to activate the changes.

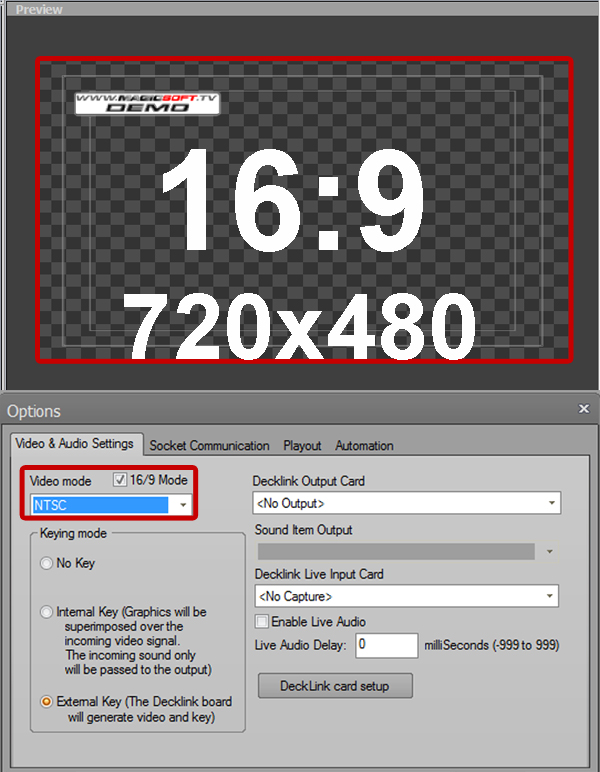

  Proceed the same way for the NTSC mode.
