MagicSoft CG can dynamically adjust the font size and aspect in order to fit the target width.

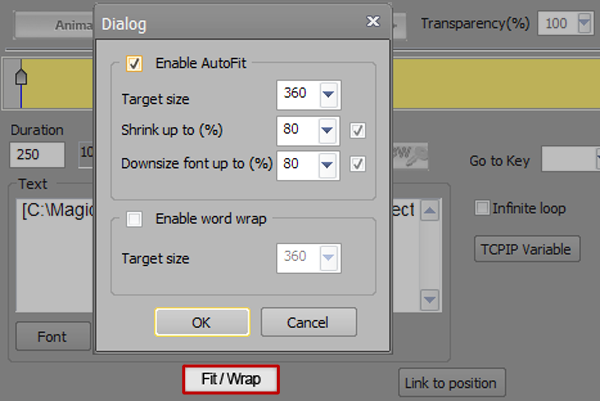

The auto-fit settings dialog contains the controls that allows you to choose :
- the width of the target area
- how much the resulting text can be shrunk (as % from initial value)
- how much the font size can be decreased (as % from initial value)

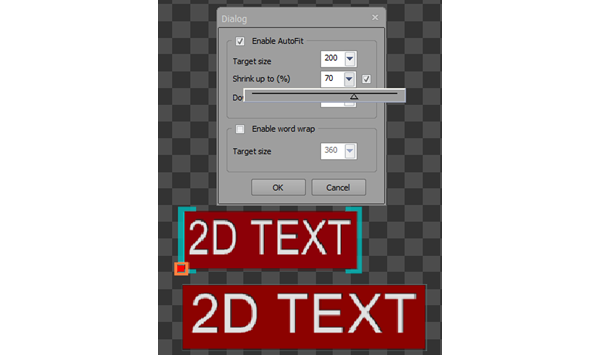

Shrink factor controller allows you input a percent value that will be the maximum shrink that is permitted.
A shrink factor up to 70% is recommended.
If you don't want to shrink the text you must input 100% value.

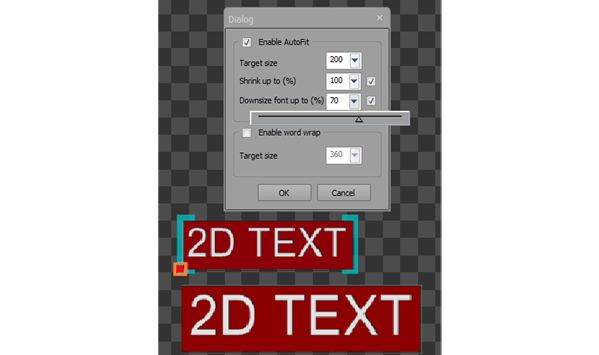

Downsize font factor controller allows you input a percent value corresponding to the downsize font that is permitted.
A downsize factor up to 70% is recommended.
If you want to keep the text size constant you must input 100% value.

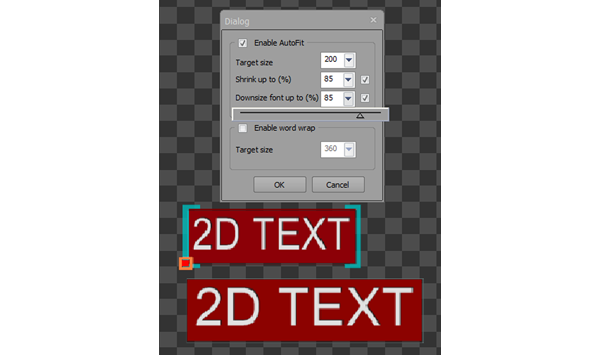

The most efficient way to use the auto-fit feature is to enable both shrink and font downsize.

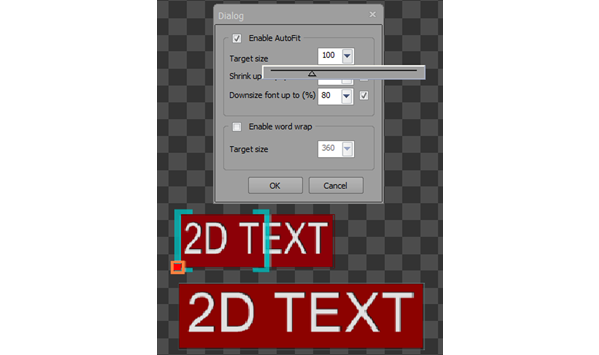

Don't forget that the text may be too long to match the desired width (even after applying auto-fit settings).
In such cases, the text will be displayed with corresponding shrink and downsize font factors but will exceed the desired width

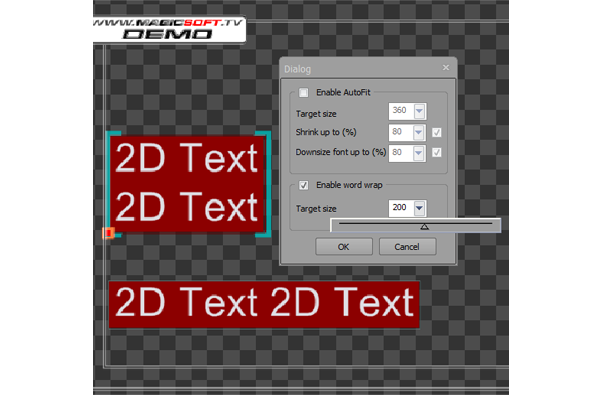

Wrap feature allows you to split the initial text in order to be written on multiple rows so each row will not exceed
the indicated length (the initial text must contain spaces in order to be wrapped).
